Playbook is a Unity-based tool for designing, prototyping, and refining interfaces collaboratively between XR and web. During my time on this project, I contributed to several key systems:

Unity | C#

Playbook3D

Object Selection & Manipulation

I implemented three main interaction methods: direct grabbing (using controllers or hand tracking), ray-based pointing, and gimbal controls for precise translation, rotation, and scaling. To support bulk editing, I added group selection capabilities and designed a visual wireframe system to clearly highlight selected objects.

Hand Tracking & Passthrough

I integrated Meta's XR SDK to add passthrough, spatial anchors, and hand tracking. This let users see and interact with their real environment while working with virtual objects.

Real-Time Cross-Platform Collaboration

Playbook required real-time synchronization between multiple users across web and Oculus. Using Normcore’s networking system, I built components that synchronized object transforms, user positions, and selection states, ensuring a consistent shared environment for all participants.

Animation & Keyframing

I designed and implemented a custom animation timeline system, allowing users to create, preview, and trigger keyframed animations. This system included support for playback controls and event-driven behaviors like “on hover” or “on click” triggers.

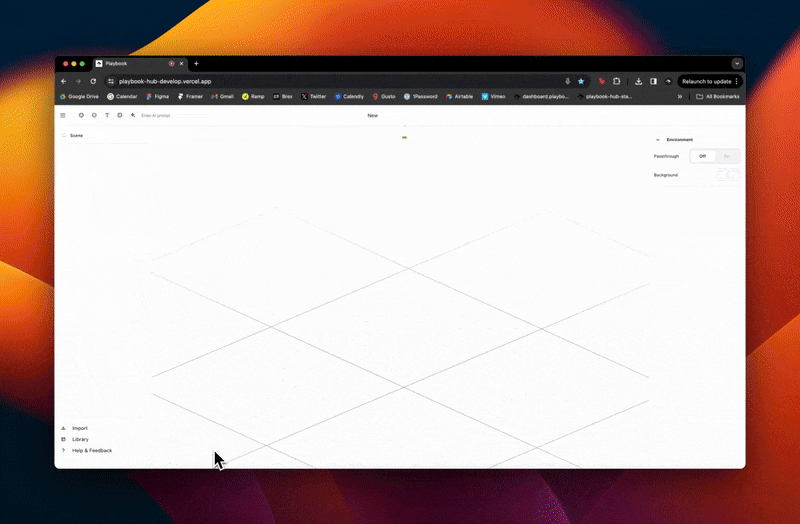

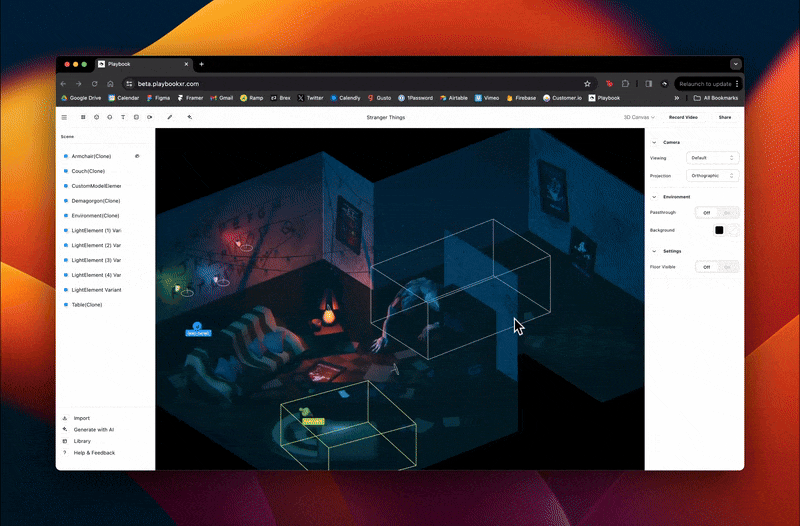

Object manipulation, wireframes, and real-time collaboration.

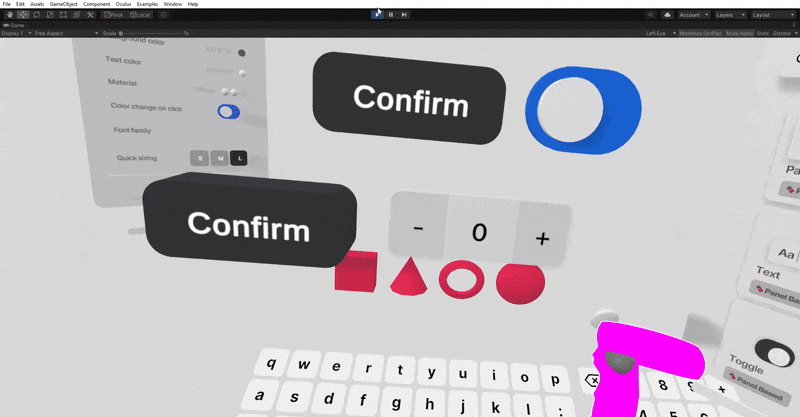

Group selection and wireframes.

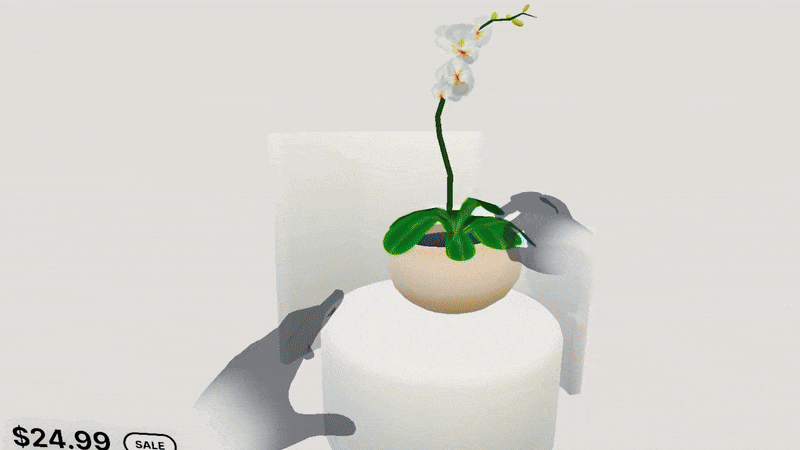

Hand detection and passthrough.

Object manipulation and animation keyframing.

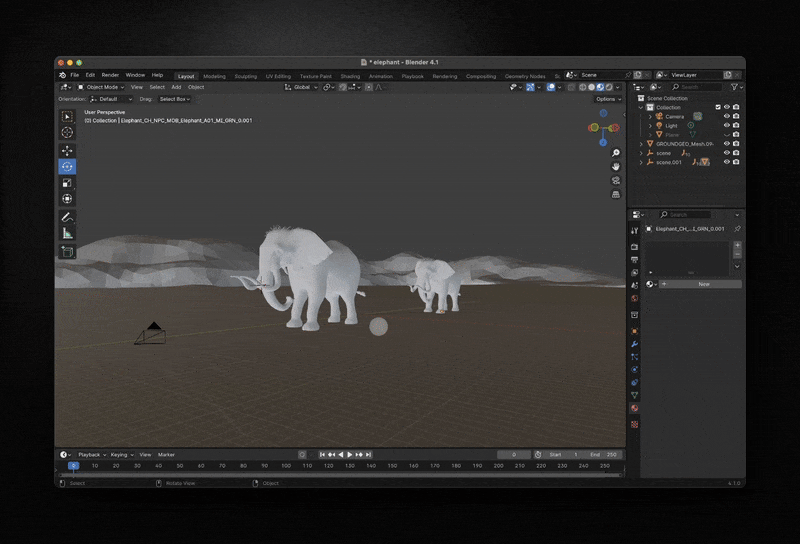

I built a custom Blender add-on to integrate with Playbook3D’s AI Render Engine. It captures renders through the scene camera and generates multiple image passes (mask, normal, outline, and depth) which are sent to Playbook’s backend for AI-enhanced rendering. I also implemented an auto-update feature to notify users of plugin version mismatches and allow for one-click upgrades.

Playbook Blender Add-on

Blender | Python | ComfyUI

This Unity package enables AI-based rendering directly from within the Unity editor. I developed a capture system that records a series of in-game frames and processes them using fullscreen shaders to extract key image passes (mask, normal, outline, depth). The final data is transmitted via WebSocket to Playbook’s backend pipeline for AI-enhanced render generation. I also implemented several core features like a customizable segmentation mask pass, frame rate selection, and video clip length selection.

Playbook Unity SDK

Unity | C# | ComfyUI

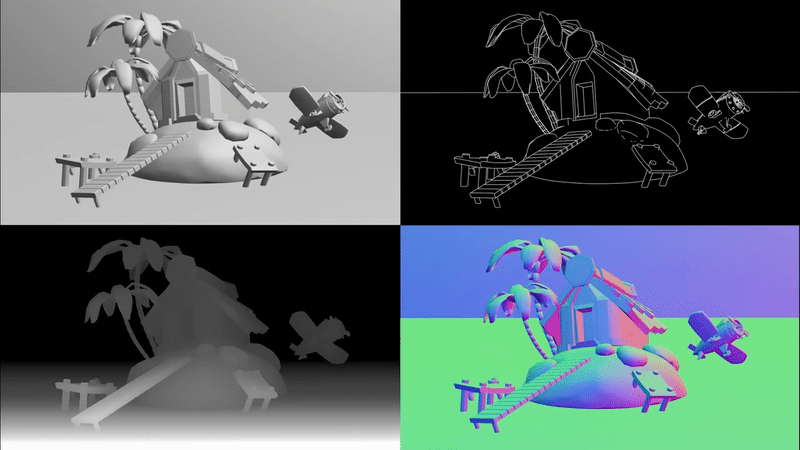

An example of the original, outline, depth, and normal passes.

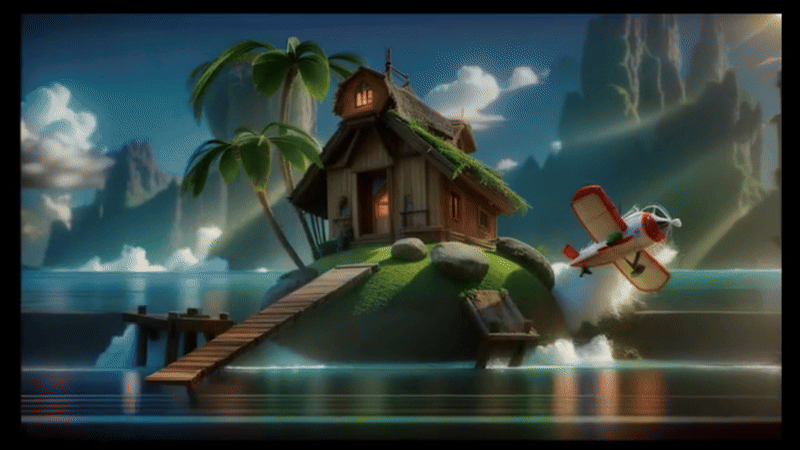

Resulting image.
